Laser Scanner Sphere with magnetic base / with suction cup
-
Plastic scanning sphere featuring special matt textured lacquer for optimum reflection behaviour.
-
Shock-resistant plastic. Washable and dishwasher-safe surface
-
Fixed points for linking several viewpoints
-
Assignment of spatial reference information to a geodata set
-
Can be used from all sides
-
Suitable for indoor and outdoor use

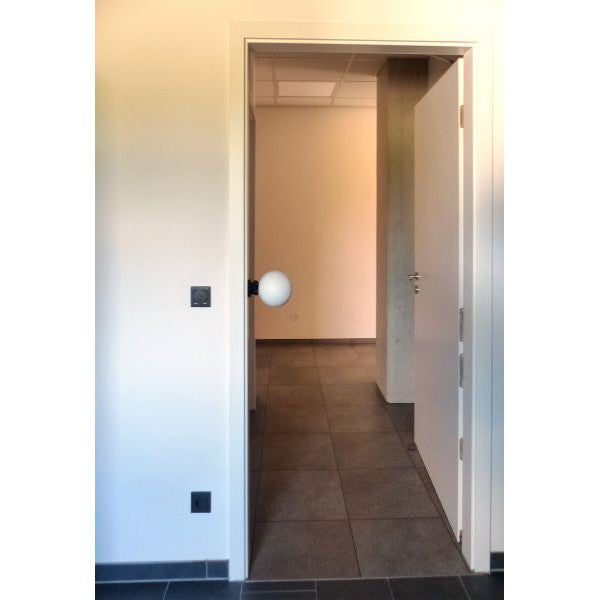

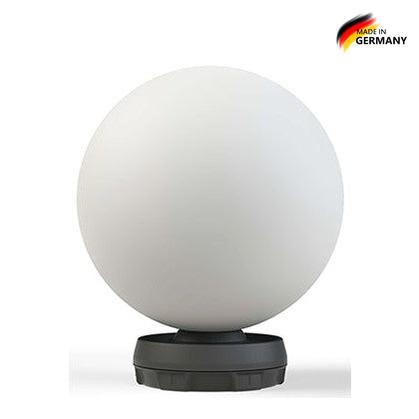

Laser Scanner Sphere with special magnetic base:
- Special magnetic base with 10 magnets for all metallic surfaces and other applications.
- It has a recess for use in conjunction with RSFP-X90 fixed points.
- For use with RSFP-X90-1, RSFP-X90-2, and RSFP-X90-3 adapters:
- A) This allows the laser scanner sphere to be placed on any standard tripod or trivet.
- B) This allows the laser scanner sphere to be placed exactly over an RS Mini Prism.
- The 100 mm tilt axis height corresponds to common prisms so that the XYZ coordinates can be easily and precisely determined using a total station.

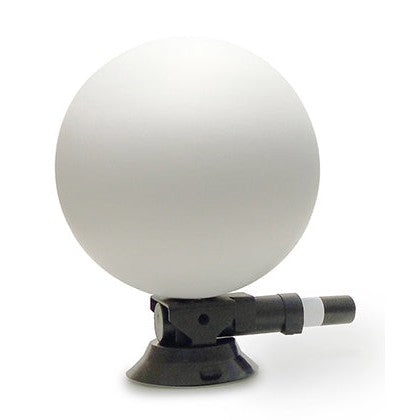

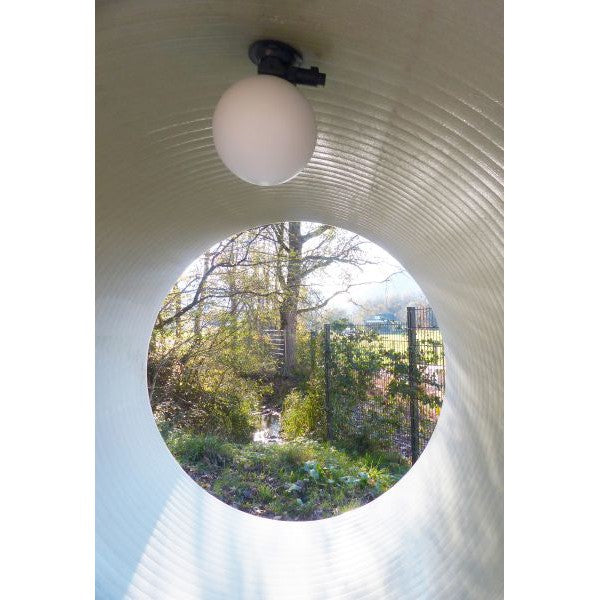

Laser Scanner Sphere RSLB10SV or Suction Cup RSSV-X90
- Enables the use of the laser scanner sphere on any smooth surface, such as glass or smooth furniture fronts, without drilling or gluing.
Technical data:
- Diameter: 145 mm
- Tilting axis height: 100 mm (RSLB10M)
- Weight of scanner sphere (sphere only): 250 g
- Sphericity: 0.3 mm at 20 ºC
- Accuracy radius: ± 0.15 mm at 20 ºC
