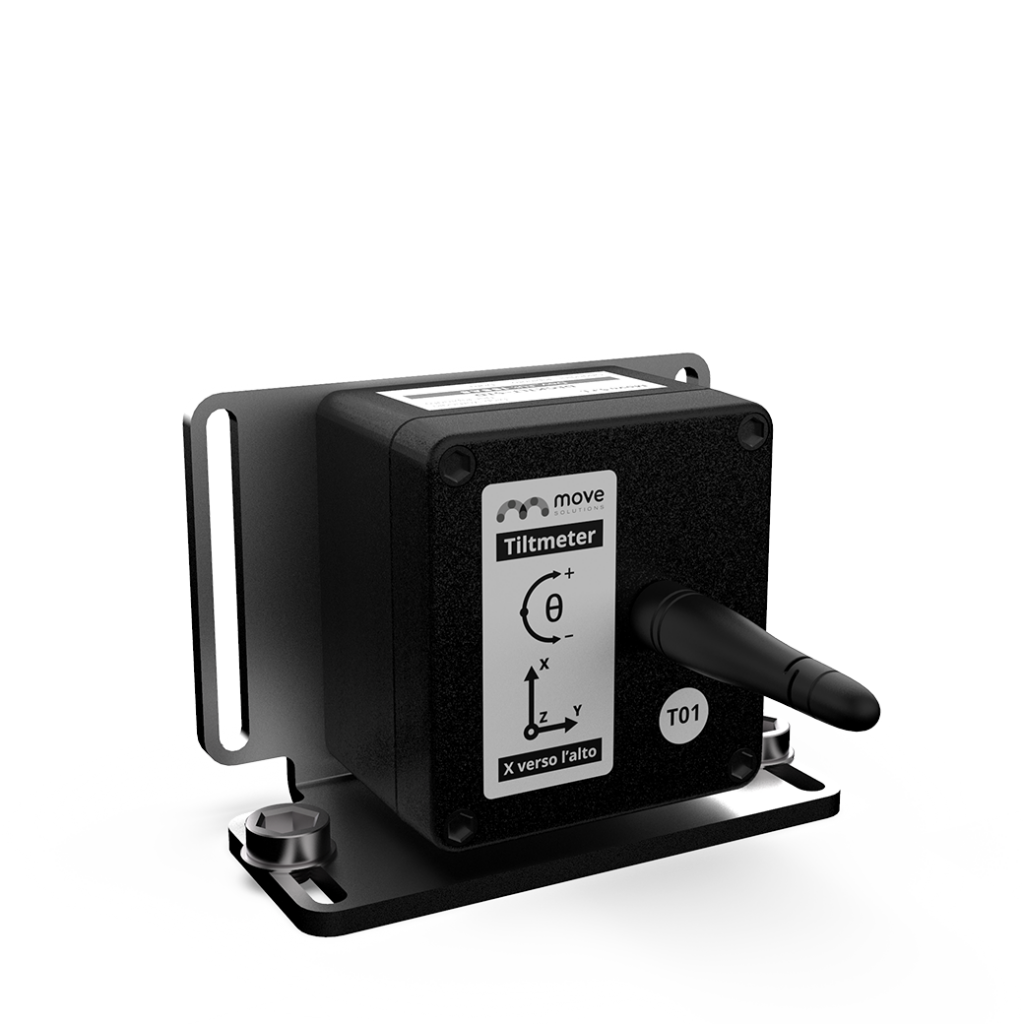

Wireless Tiltmeter

The Triaxial Tilt Monitoring sensor is a highly accurate and exceptionally stable three-axis wireless Tiltmeter. Variable and remotely configurable sampling rates, a rugged design and a battery life of up to 8 years make this wireless Tiltmeter suitable for many environments and solutions. The wireless Tiltmeters transmit accurate readings from the site via the LoRaWAN wireless communication protocol via a Gateway.
You can view and interact with your data online using the Move Cloud Platform. There are multiple data processing and correlation algorithms developed by Move. It is possible to calculate the deflection of the structure with respect to a baseline. It also mounts a temperature sensor to relate thermal excursion and static deformation. Ideal for static monitoring of large structures and static load tests.

Key Parameters:

• Triaxial wireless tilt sensor
• Integrated temperature sensor

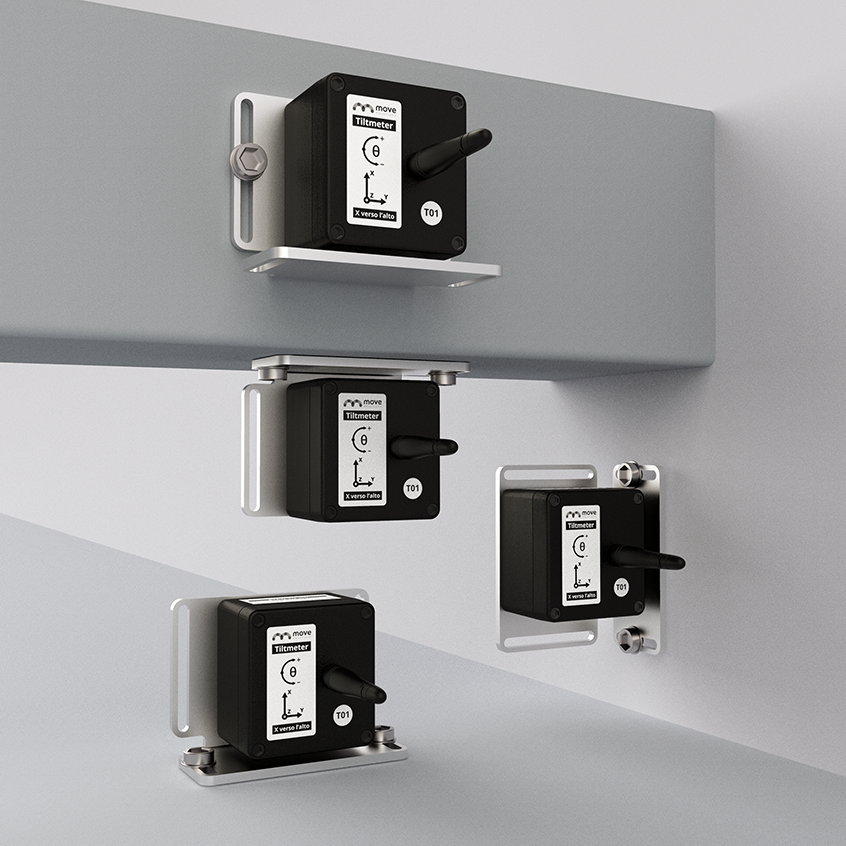

• Extremely easy installation with versatile mounting options
• Ultra low noise performance
• Possibility to purify the data from the installation offset
• Resolution of 0.000015° (0.00027mm / m), repeatability of ± 0.0005° (± 0.009mm/m) and range ± 90°
• Built-in long-life battery, about 8 years of life
• Waterproof rating IP67
• Firmware is remotely upgradeable over the air via the Gateway, reducing costly site visits

Applications:

Building Monitoring

Monitor the static angular variation of the structural elements and to obtain the deflection of floors, walls and beams.

Bridge Monitoring

Monitor all the static parameters of a bridge as pier rotations or span static deflections.

Railways Monitoring

Monitor the longitudinal deflection and the transversal deformation of the rail track.

Geotechnical Monitoring

Monitor all the slow movements for measuring horizontal displacement, lateral displacement, settlement and heave.
