Mini Prisms with Swivel and Tilt Function

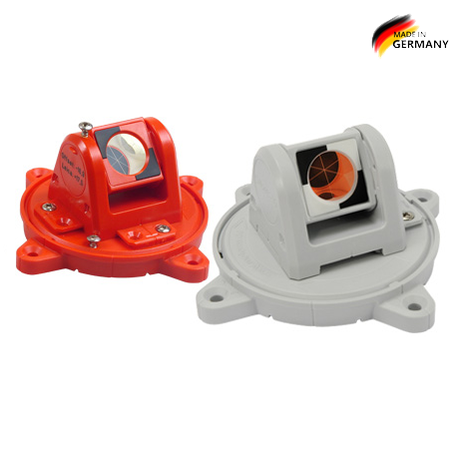

Mini Prism RSMP390 and RSMP390M with silver or copper coated, Ø 25.4 mm prism, can be rotated and tilted.

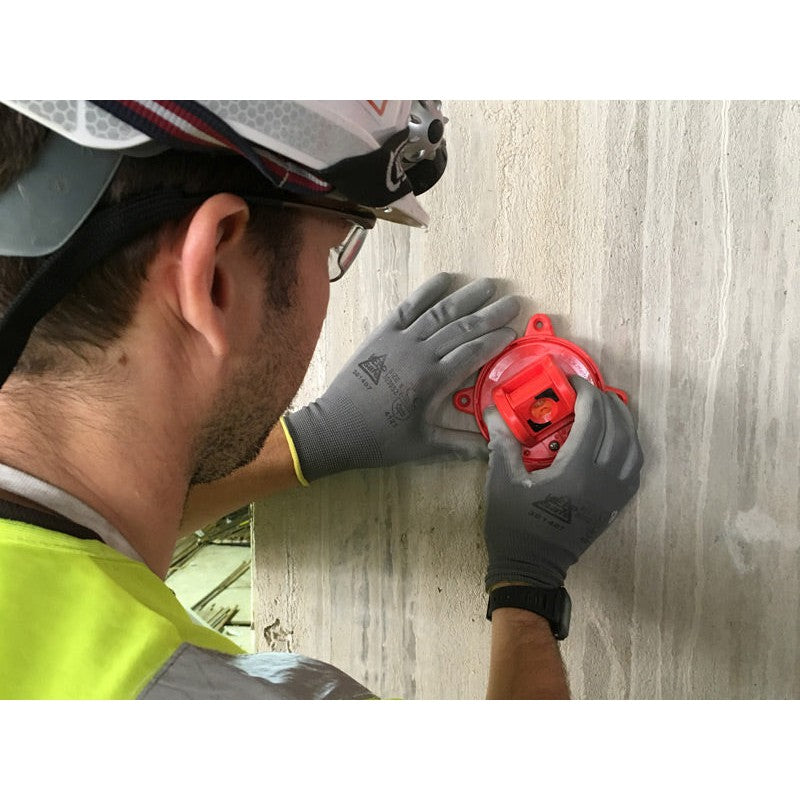

RSMP390 can be quickly and easily stuck even to difficult surfaces, such as glass and marble façades, historic buildings, gas and oil pipelines, etc., or attached using plugs and screws. A magnetic version of the base plates is also available for easy installation on steel structures. If necessary, both the rotation function and the tilt function can be fixed by means of a screw.

The following accessories are offered for this product:

• Fixed point (Item RSFP-X90)

• Protection cap with or without magnetism (RSPC20, RSPC20M)

When using tachometers and robotic total stations:

• The prism can always be aligned accurately with the measuring instrument.

• The prism can be turned in a radius of 180°, making it possible to use the same survey point from different directions.

• Bridges, façades, and many other structures can be monitored even more quickly and precisely.

• When robotic total stations are used, permanent settlement measurements can be carried out during construction.

When using mini prism RSMP390 in the ATR mode, ranges of 500 meters to 700 meters are obtained.

The ranges are dependent on the device and can be adversely affected by weather and environmental conditions.

When sighting measuring points that are already known, with robotic total stations, it is possible to achieve ranges of up to 1000 m. Depending on the focus, ranges of approximately 200 m are achieved for measurements in manual mode.

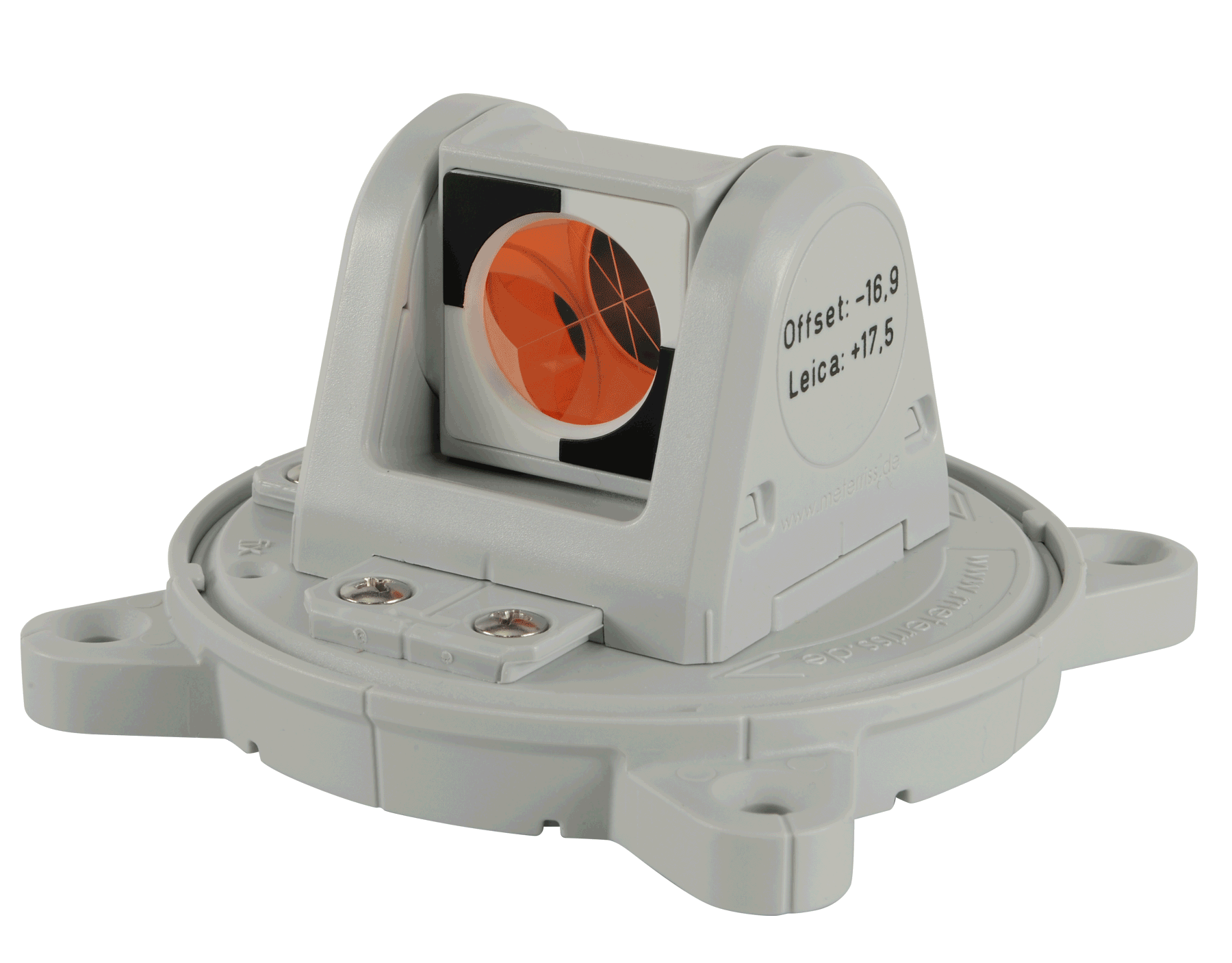

RSMP390 with 25.4 mm mini prism: offset: -16.9 (minus 16.9) [Leica +17.5], tilting axis height: 45 mm
