Goecke Ball Base for 38.1mm Balls, 3kg Force

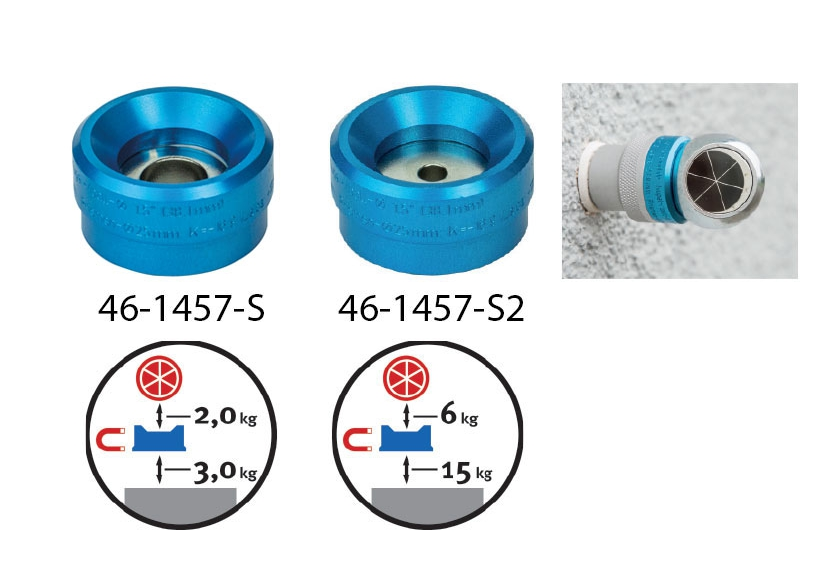

This ball base made of hard anodised aluminium features an integrated permanent magnet and is suitable for very fast and reliable mounting on all magnetic surfaces and our centring plates. Available for balls with 1.5“/ Ø 38.1mm with 3kg holding force.

The distance between the ball centre and the bottom of the base face is always 30.8 mm ± 0.1mm and - with the right combination of components - is irrespective of the selected base and prism.

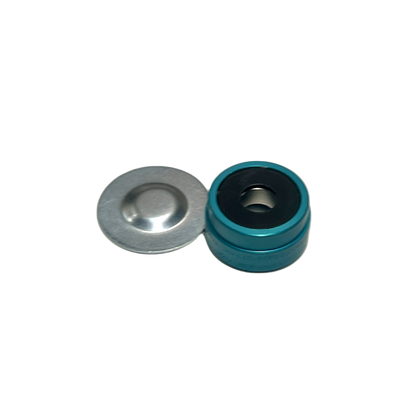

All ball bases are supplied with a magnetic cover plate to protect against contamination.
