Intelligent 2D grading solutions for motor graders
Leica iGG2 solutions for dozers increase machine utilisation, productivity and material efficiency in any earthmoving and fine grading contract. The solution can be paired with a wide range of sensors and combines ease of use, flexibility with an intuitive user interface.

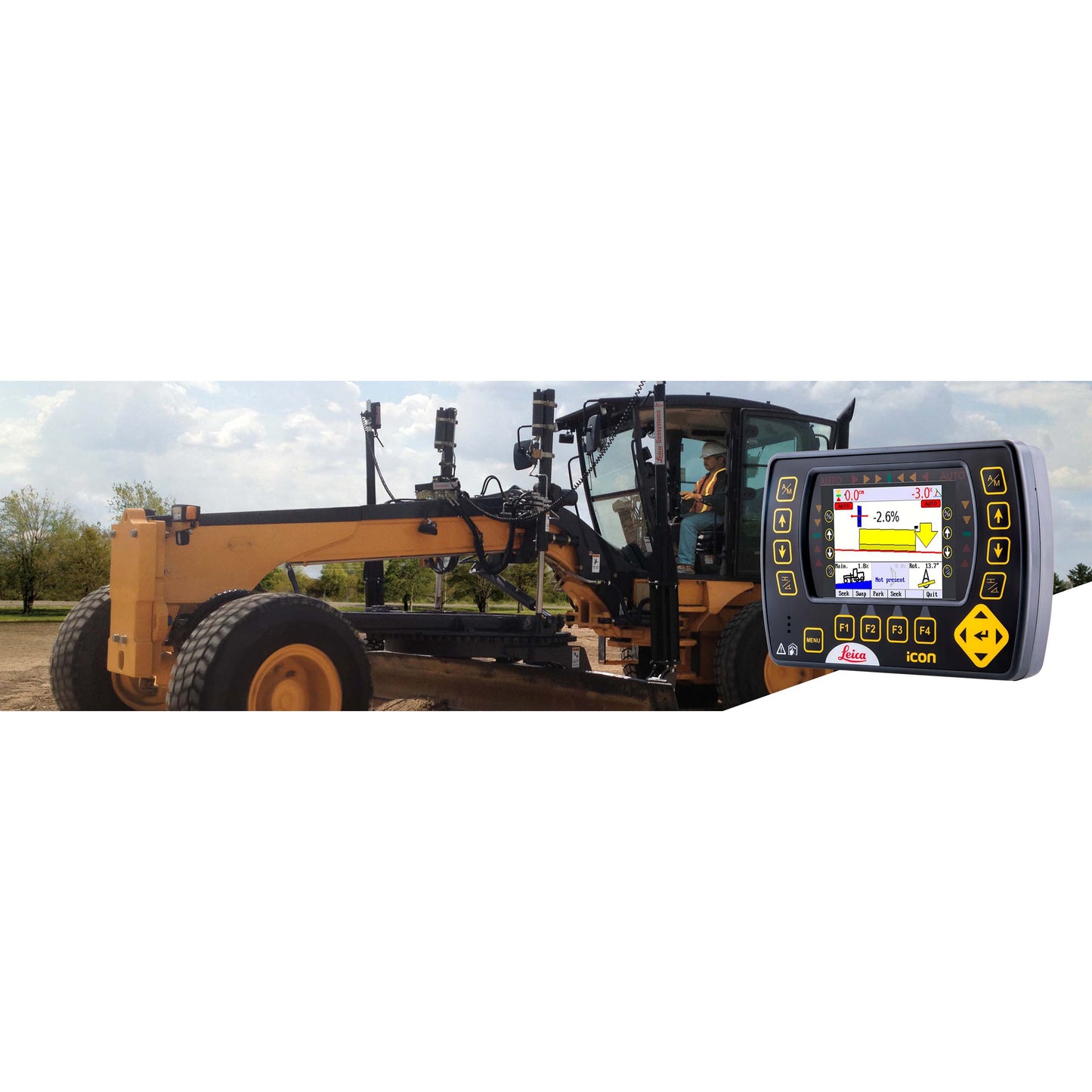

Entry-level machine control
The Leica iCON grade iGG2 solution provides automatic control of both slope and elevation. Laser receivers are mounted on the grader and used together with a rotating laser. A single laser indicates height. Adding an extra mast and laser sensor allows you to work independently of the slope direction.

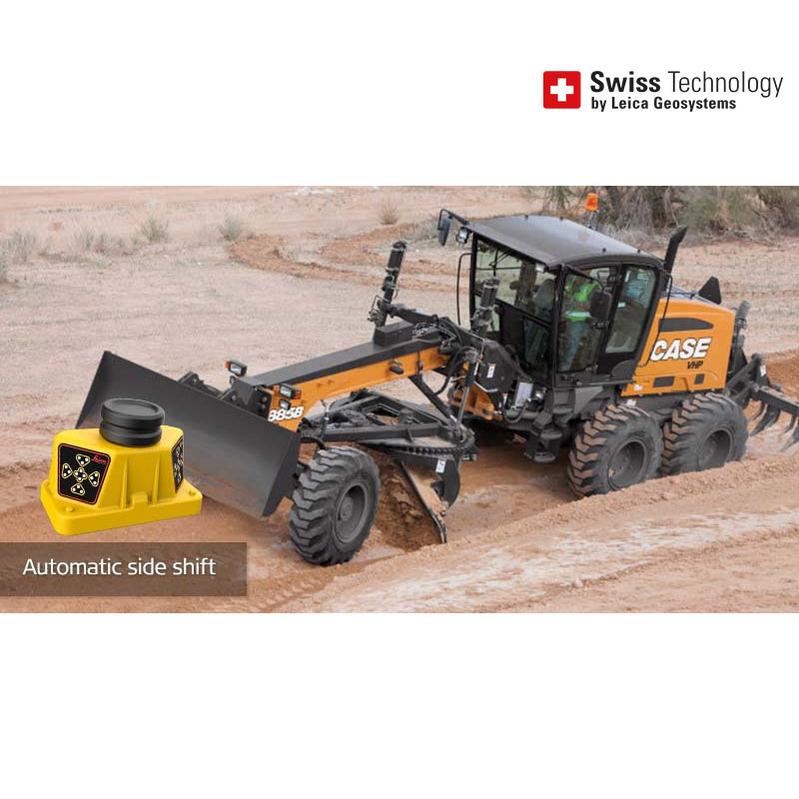

Automatic side shift
For graders, the new trisonic sensor is used to hold the height and slope by following a string line or an existing curb. When the machine runs in Auto mode, the trisonic sensor holds the height and controls the side shift following a string line or an existing curb.
State-of-the-art sensors
Use the Leica MLS720 or MLS 820 laser receivers. The new MLS820 laser receiver has a wider span which can be used without electrical mast. It features Electronic Set Point to avoid manual moving of the sensor up and down and eliminates the use of an electrical mast. It can also be used as a stand-alone unit powered by a car battery in areas with poor electrical supply.
Flexible and upgradable
Benefit from a simple 2D solution with new and improved sensors and upgrade easily when the job site requires more automation, documentation and accuracy. Add MCP80 panel, MC1 software, and GNSS antennas or radio and prism to upgrade to a 3D solution without having to change sensors and cables.
