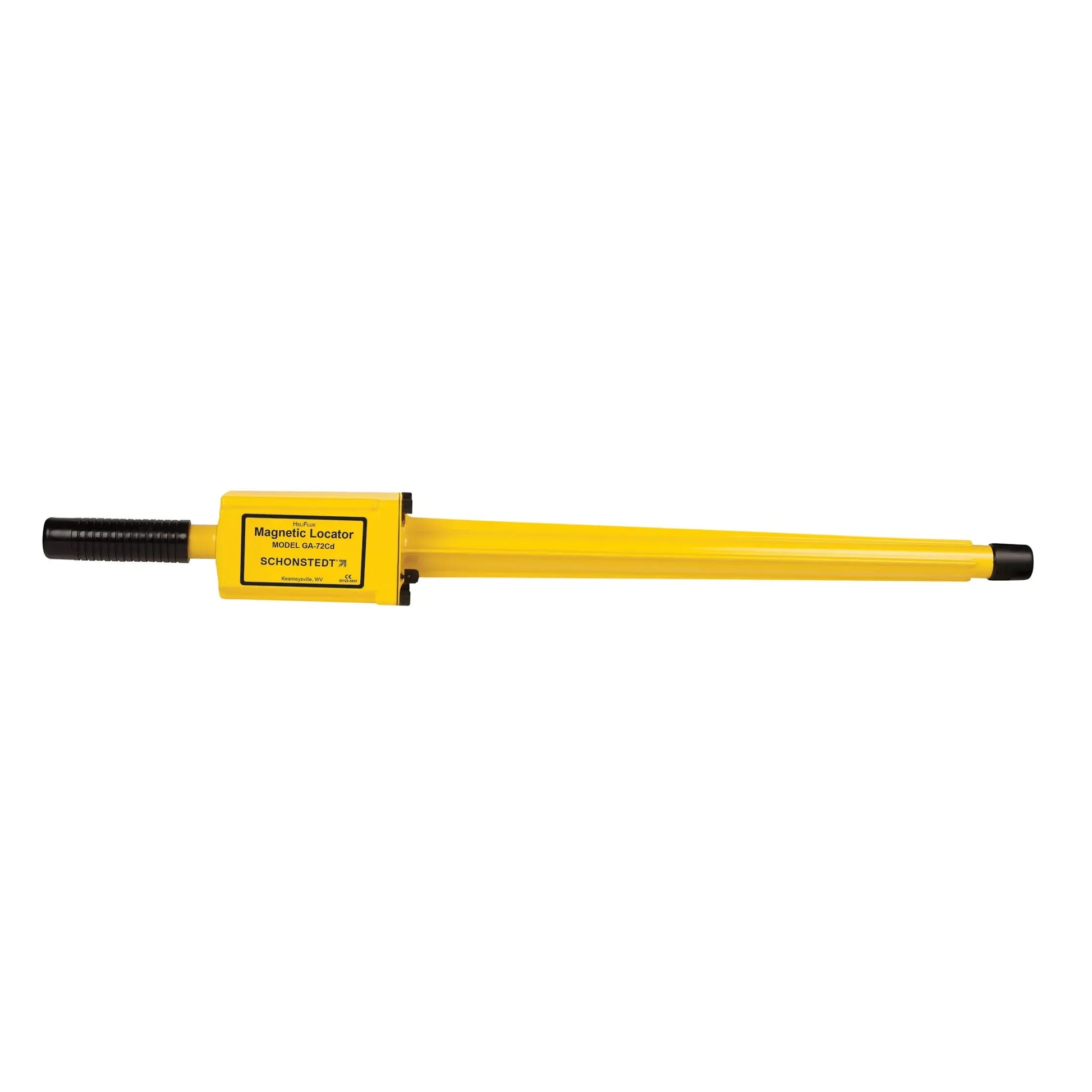

Schonstedt GA-72Cd Magnetic Locator
Regular price
$1,940.00 CAD
Sale price
$1,940.00 CAD
Regular price
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Schonstedt GA-72Cd is a high-sensitivity magnetic locator and professional pin finder designed for precise detection of iron and steel objects in demanding field conditions. Trusted for over 50 years of industry-leading reliability, it delivers fast, accurate target identification without passing over your mark.
Featuring both audio and visual output, the GA-72Cd offers selectable Peak or Null response modes. Audio signals intensify when positioned directly over a target, while the 3-digit LCD and expanding bar graph display signal strength and polarity for added accuracy. Widely used in UXO and demining applications, this pin finder combines precision with rugged durability.
- Audio & visual output
- Peak or Null response modes
- 4 sensitivity levels
- 3-digit LCD with polarity indication
- Battery & sensitivity indicators
- HeliFlux® sensors
- No response to aluminum, brass, or copper
- Rugged polycarbonate & ABS construction
- 7-year warranty
- Power: Two 9V batteries
- Battery life: Approx. 40 hours (intermittent use)
- Length: 34.5" (87.6 cm)
- Waterproof length: 21" (53.3 cm)
- Sensor spacing: 14" (35.6 cm)
- Weight: 2.5 lb (1.14 kg)
- Operating temp: -13°F to 140°F (-25°C to 60°C)
