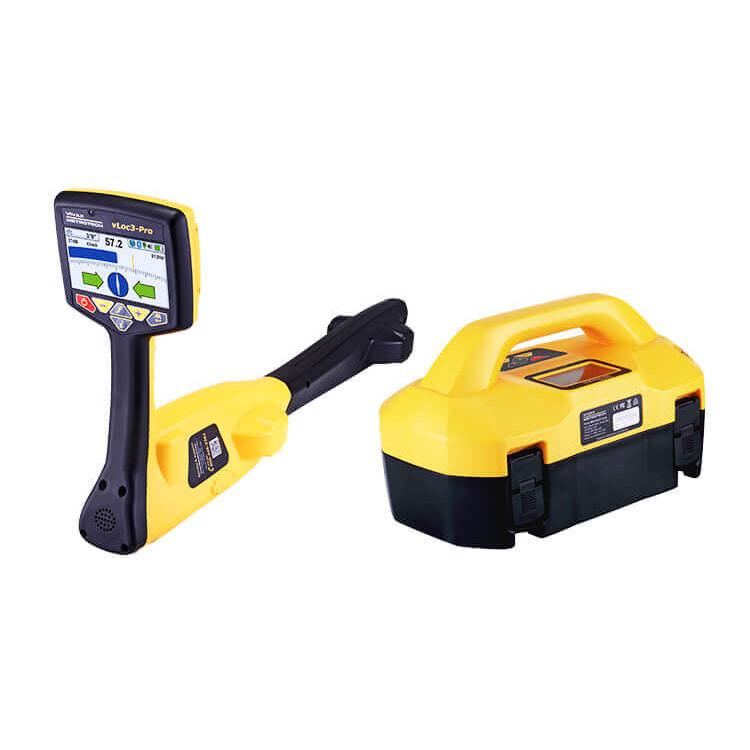

The Vivax vLoc3-Pro Locator Kit pairs the advanced vLoc3-Pro Receiver with the 5-Watt Transmitter to deliver accurate, efficient, and dependable utility locating performance in any environment.
The vLoc3-Pro Receiver uses dual 3D antennas and a bright full-color display to clearly identify and visualize signal distortion. Multiple view modes—Vector Locate, Transverse Graph, Plan View, and Graphical Sonde—provide complete situational awareness for buried utilities. With eight passive locate modes, fault-find, and Signal Direction (SD) capabilities, it offers configurable frequencies from 98 Hz to 200 kHz. Audible and vibration alerts warn of shallow depth, overload, or excessive swing, while internal data logging, color-coded distortion indicators, and optional Bluetooth connectivity support detailed reporting and GPS integration.
The 5-Watt Transmitter provides reliable signal output through induction or direct connection, with selectable frequencies from 98 Hz to 200 kHz. It includes SD mode for confirming the correct target line in congested areas and true resistance measurement up to 1 MΩ. The LED-backlit display shows all key output data including voltage, resistance, current, and battery condition. Housed in a rugged, lightweight IP54-rated case, the transmitter offers protection from up to 240 V accidental connections and supports both AC/DC power input.
Kit Includes:
5" Induction Clamp sold separately
