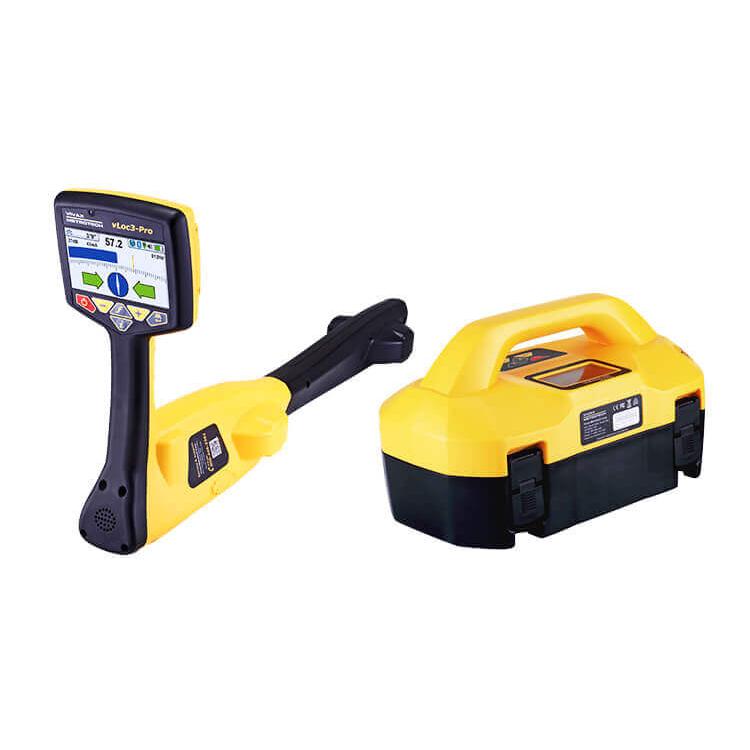

The Vivax vLoc3-Pro Locator Kit combines the advanced vLoc3-Pro Receiver and 10-Watt Transmitter to deliver precise, reliable locating for buried utilities. Designed for professional use, this system enhances accuracy, data capture, and on-site efficiency.
The vLoc3-Pro Receiver features dual 3D antennas and a bright full-color display to detect and visualize signal distortion in real time. Multiple view modes—Vector Locate, Transverse Graph, Plan View, and Graphical Sonde—provide comprehensive utility mapping and simplified guidance. It offers eight passive locate modes, fault-find, and Signal Direction (SD) capabilities across configurable frequencies from 98 Hz to 200 kHz. Audible and vibration alerts warn of shallow depth, overload, and other hazards, while internal data logging, color-coded distortion indicators, and optional Bluetooth connectivity support detailed reporting and GPS integration.
The 10-Watt Transmitter provides robust signal output for accurate line tracing, with selectable induction and direct-connect frequencies from 98 Hz to 200 kHz, SD mode verification, and true resistance measurement up to 1 MΩ. A backlit LCD displays all key parameters, including output current, voltage, resistance, frequency, and battery status. Housed in a lightweight IP54-rated case, the transmitter ensures consistent performance and protection against up to 240 V accidental connections.
Kit Includes:
5" Induction Clamp sold separately
