Laser Scanner & SLAM Targets RSL632M & RSL652M

Laser Scanner and SLAM Targets with Special Magnetic Base and swivel and tilt function

• Ball bearing joints allow the laser scanner target to be aligned smoothly in any direction while always remaining precisely on axis and in position.

• The target can be used as a scanner or drone target

• Available in two versions:

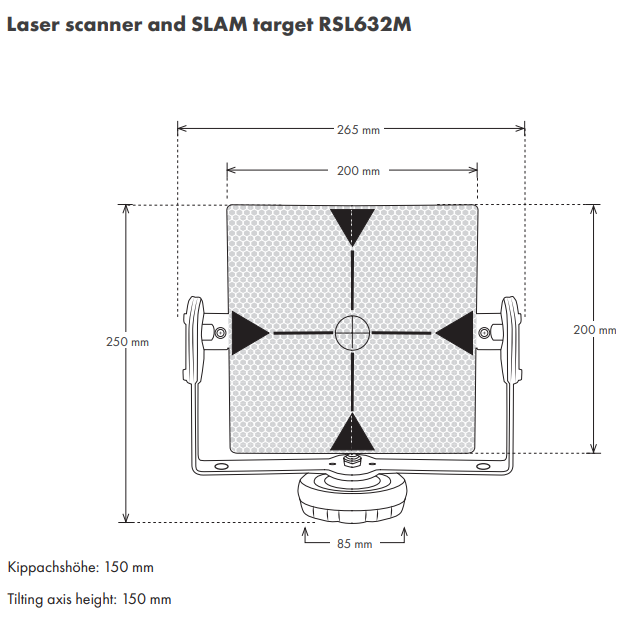

  • RSL632M – with 200 x 200 mm target, tilting axis height 150 mm

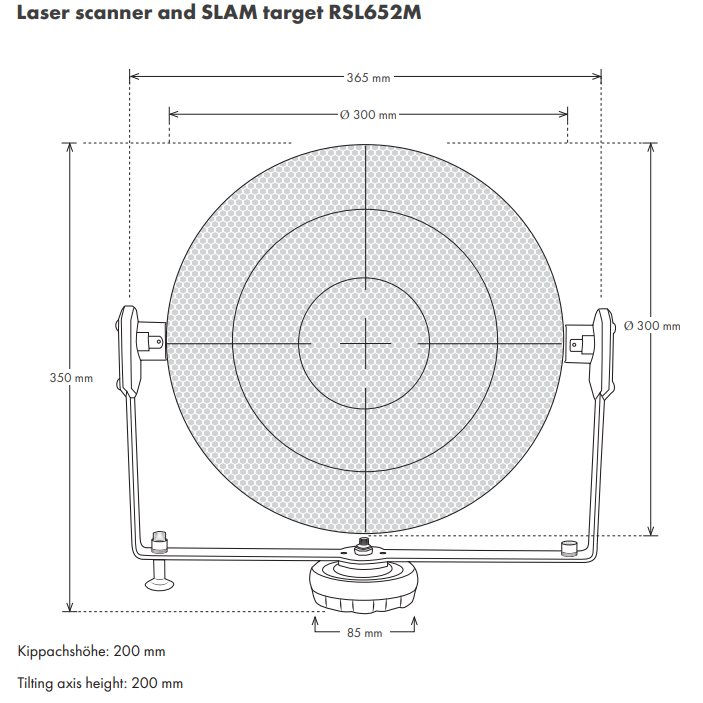

  • RSL652M – with Ø 300 mm target, tilting axis height 200 mm

• Fixed points for linking several viewpoints

• Assignment of spatial reference information to a geodata set even over longer ranges

Magnetic Base:

• Special magnetic base with 10 magnets for all metallic surfaces and other applications

• The cavity on the magnetic base for use in conjunction with the fixed point system RSFP-X90 to RSFP-X99 variants

• When using the targets in conjunction with the RSFP-X90-1, RSFP-X90-2, RSFP-X90-3 or RSA-5/8-1 adapters:

  • This allows the laser scanner target to be placed on any standard tripod or trivet.

  • This allows the laser scanner target to be placed exactly over an RS mini prism.

• Due to the dead weight, the RSFP-X99 fixed points with greater magnetic force are recommended for the use of the marks on walls or non-metallic surfaces.
