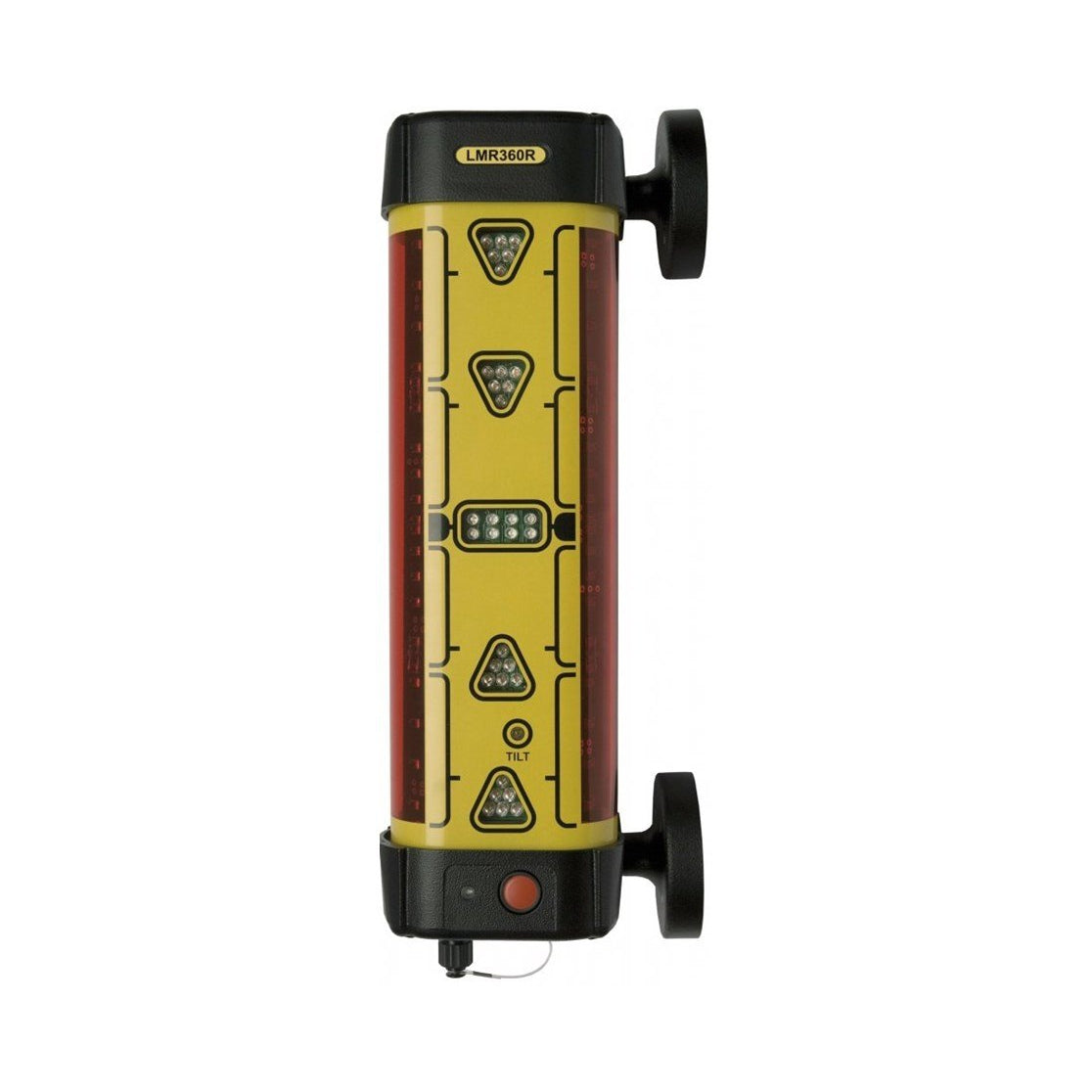

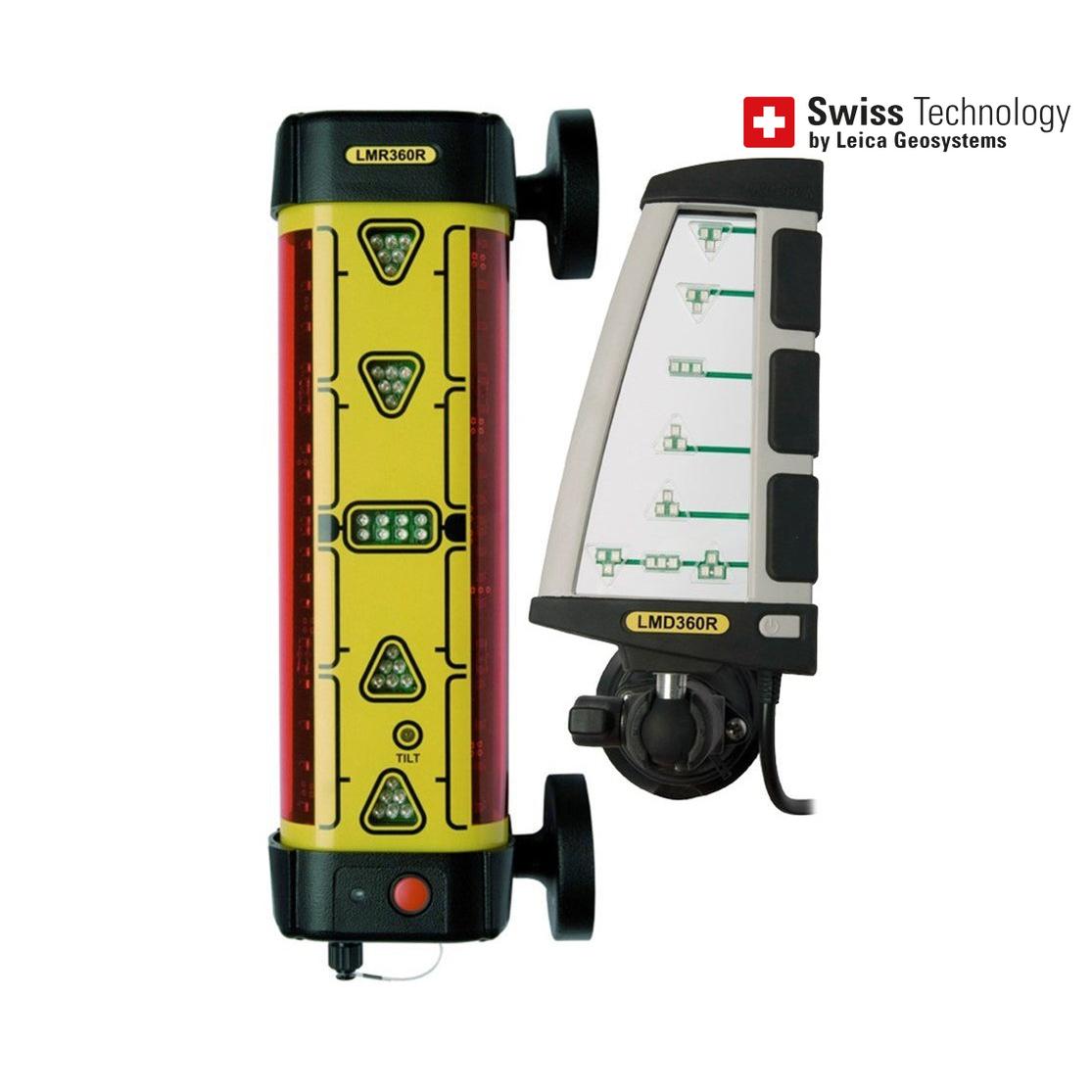

The LMR360R receiver provides accurate grade information for all visual machine control applications, with large 360 reception from any rotating laser from any angle.

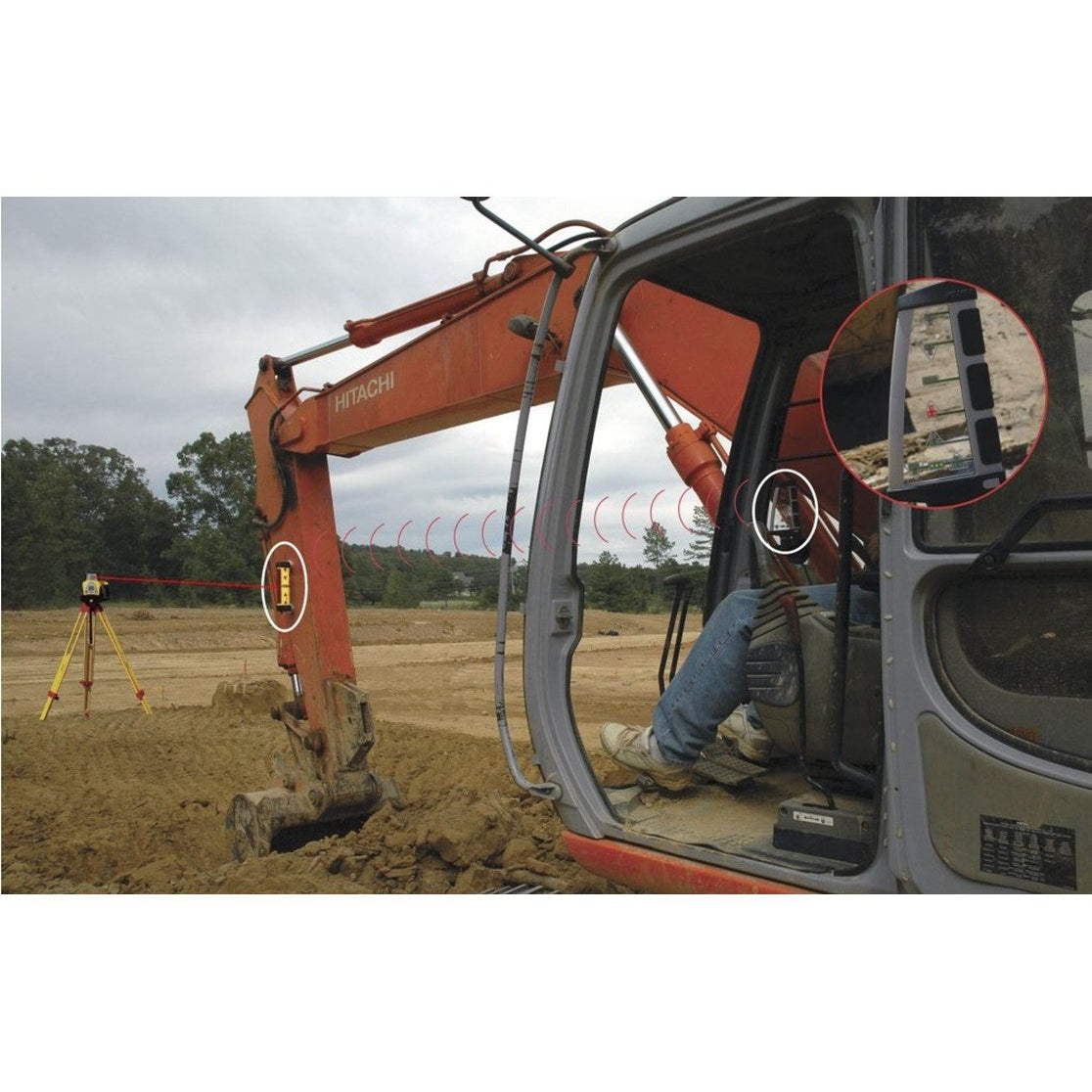

Built-in vertical indicator monitors angle of stick, signaling if it's plumb or under- or overextended. Vertical position ensures consistent and accurate grade readings, saving money by reducing over- or undercutting.

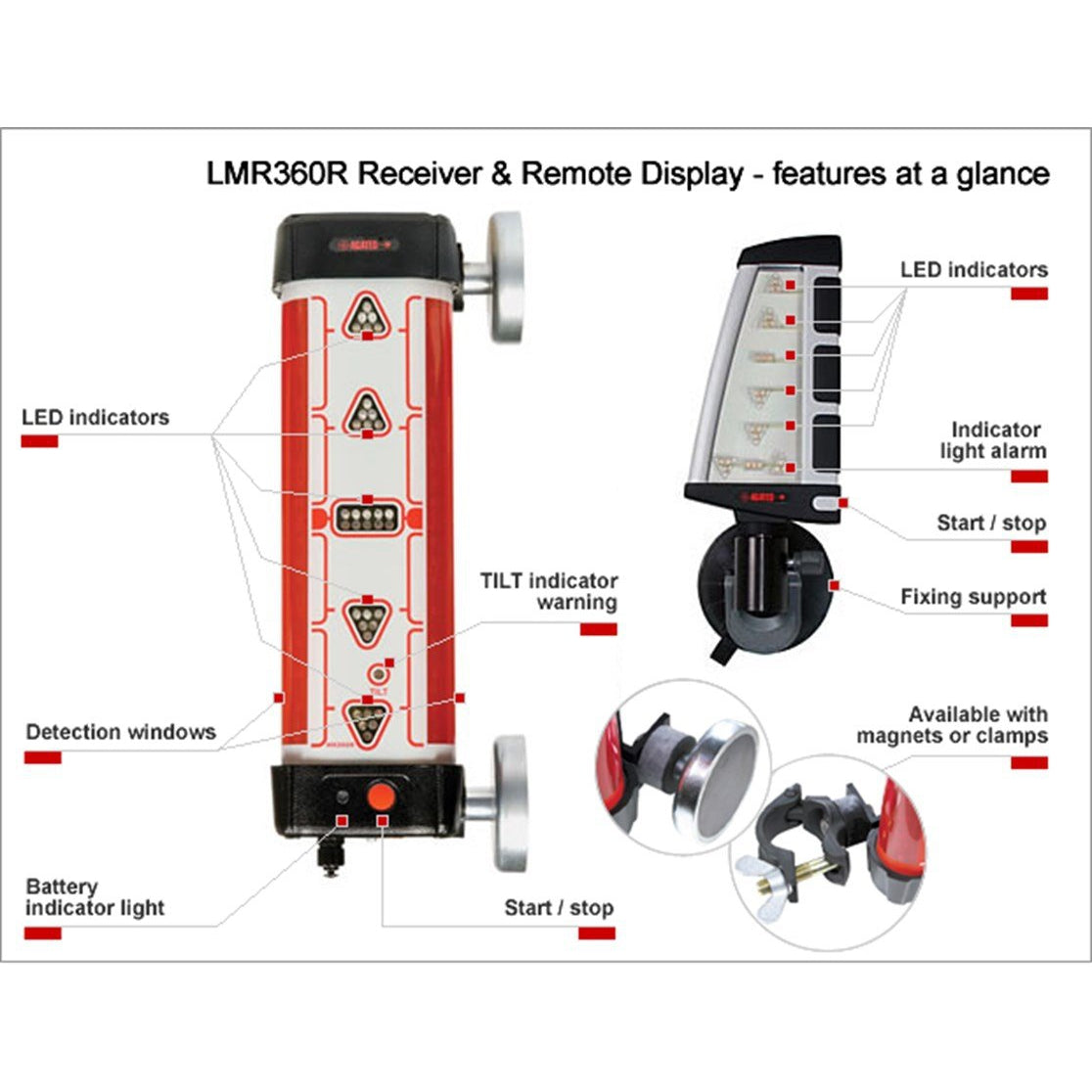

- LED indicators show position of cutting edge in relation to the laser reference beam
- Memory stores last signal received. LED arrows indicate which way to move the bucket to pick up the laser beam again
- Choice of settings: 7 channels (indicators) in coarse mode; 9 channels in fine

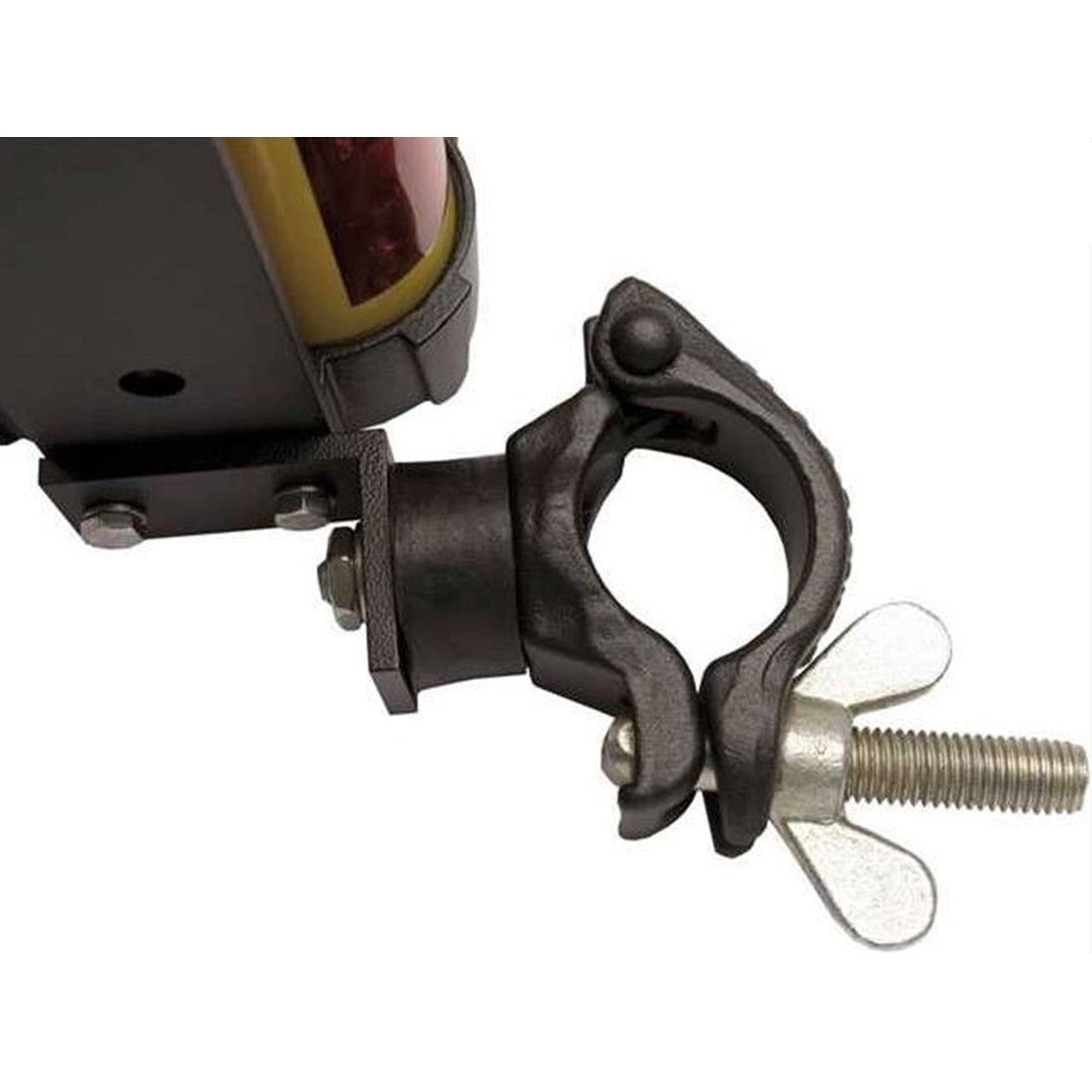

- Magnetic mount allows quick mounting and easy movement from machine to machine. Mounting clamp kit is also available
- Automatic shutoff
- Operating radius 650 feet (200 m)
- Capture window 9-3/4" (25 cm)
- Accuracy: fine 1/4" (6 mm); coarse 1/2" (12 mm)
- Waterproof IP67
- Powered by rechargeable NiMH battery
- 30 hours of battery life
- Dimensions 14-3/4" x 3" x 4-1/4" (4 x 7.5 x 11 cm)
