First Upgradable Lasers
Click Here to Review Software Comparison Chart
The maximum flexibility and the ability to quickly adjust to the job’s needs is vital for your projects. With the Leica Rugby CLA, CLH and CLI you can upgrade your lasers to match your application needs. You pay for the functionality you need to do your job without paying for the extra features that you don’t use. With additional professional services such as repair and calibration you can secure your laser’s exceptional performance for many years.

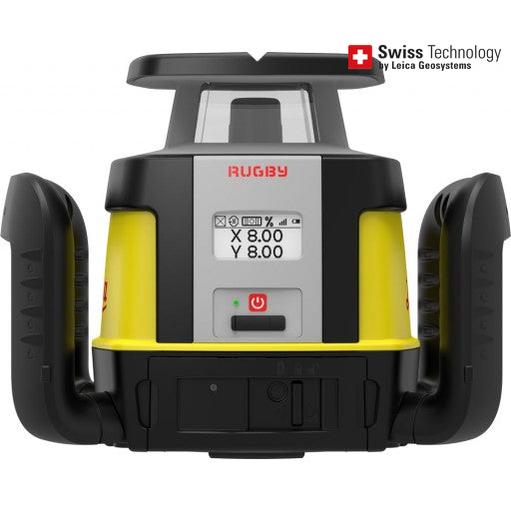

Leica Rugby CLH
Simplicity At Its Best
Leica Rugby CLH simplicity allows for effortless use of the capabilities of the laser system. It saves time by simplifying processes and making you far more productive. Its robust design secures measurement stability and accuracy for your daily tasks. The upgrade options allow for maximised performance in all levelling applications.
Â
|
Function
|
Basic**
|
CLX200
|
CLX300
|
CLX400
|
|
Horizontal plane
|
✔
|
✔
|
✔
|
✔
|
|
Self-levelling +-6°
|
✔
|
✔
|
✔
|
✔
|
|
Accuracy +-10“
|
✔
|
✔
|
✔
|
✔
|
|
Head Speed 10 RPS
|
✔
|
✔
|
✔
|
✔
|
|
Power safe mode 7 RPS
|
✔
|
✔
|
✔
|
✔
|
|
Battery operating Time 50h
|
✔
|
✔
|
✔
|
✔
|
|
HI alert
|
✔*
|
✔*
|
✔*
|
✔*
|
|
Head stall alert
|
✔
|
✔
|
✔
|
✔
|
|
Temperature alert 50°C
|
✔
|
✔
|
✔
|
✔
|
|
Head speed 0, 2, 5, 10, 15 RPS
|
|
|
|
|
|
Temperature stability control 2°C, 5°C, off
|
|
✔*
|
✔*
|
✔*
|
|
Beam masking
|
|
✔*
|
✔*
|
✔*
|
|
Manual slope dual grade 8%
|
|
✔*
|
✔*
|
✔*
|
|
Single semi auto grade, dial in 8%
|
|
|
✔*
|
|
|
Dual semi auto grade, dial in 8%
|
|
|
|
✔*
|
|
Single auto grade dial in 15%
|
|
|
|
|
|
Dual auto grade dial in 15%
|
|
|
|
|
|
Auto Axis alignment
|
|
|
|
|
|
Slope catch / lock
|
|
✔*
|
✔*
|
✔*
|
|
Field calibration
|
|
|
|
|
|
Laydown / vertical plane
|
|
|
|
|
|
Beam catching / Scanning 10°, 45°, 90°
|
|
|
|
|
Â
* The CLC Combo is required to operate and/or change these features/functionalities
** Standard software delivered with your laser
