Coupler Adapter RSA-K480, RSA-K625 and RSA-K515-665
From $286.00 CAD
Coupler Adapter RSA-K480, RSA-K625 and RSA-K515-665
Quick and easy measurement of coupler on construction sites
During bridge construction or on large projects, parts of the reinforcement must be connected with a coupler joint. To ensure that the reinforcement is placed in exactly the right position, the couplers must be checked before concreting work. On large projects with numerous couplers, this is a very time-consuming task for the surveyor.
The surveying work becomes even more complex if the couplers do not protrude vertically from the floor, but rather laterally or at an angle from the wall.
With our adapters, these measurements can now be carried out quickly and precisely.

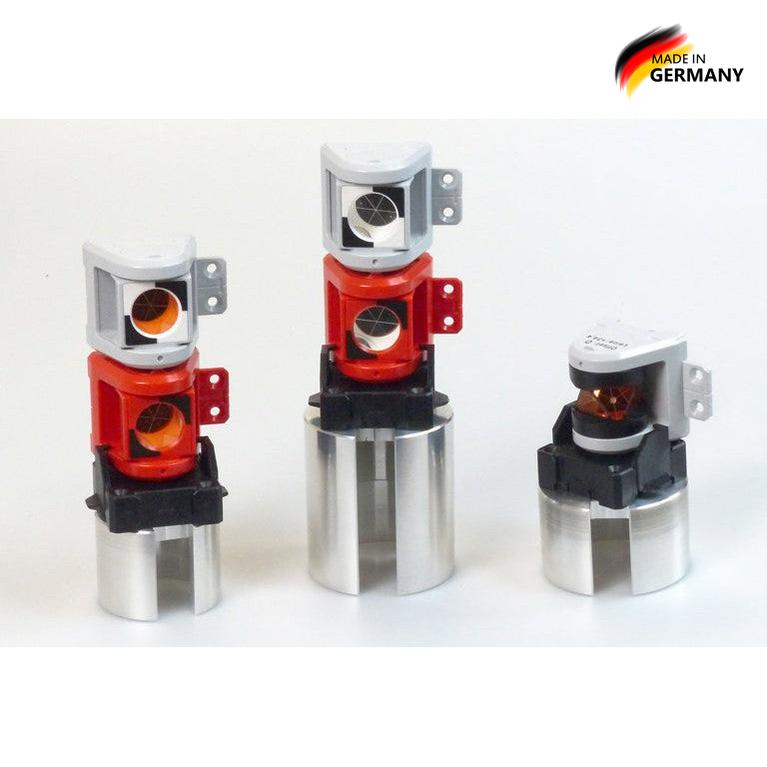

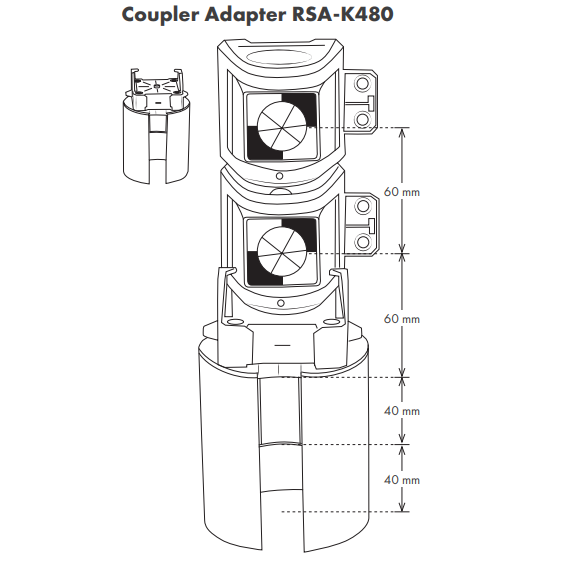

For couplers that need to be checked laterally, two prisms are attached to the adapters. The direction is determined by measuring the outer prism (grey in picture) first and then the inner prism (red in picture). The center of the coupler head is then determined by the specified height offset from prism two (red prism) to the coupler head.

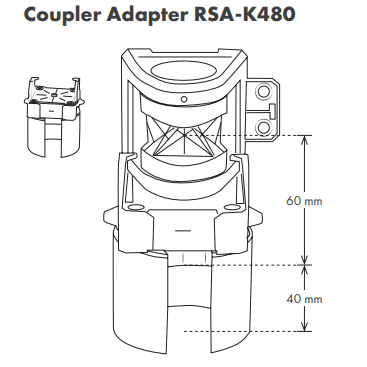

When measuring vertical connections, one prism is sufficient, but in this case, we recommend our 220° prism RSMP480 in order not to lose contact with the station when turning the adapter.
Please Note that due to Manufacturer Requirements this product has a Minimum Order Quantity (MOQ)
