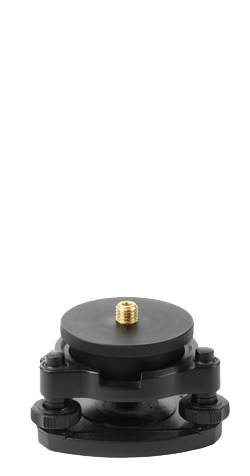

Adapter with 5/8” thread RSA-5/8-1
$48.00 CAD
With the RSA-5/8-1 adapter prisms, laser scanner targets, and drone targets from Rothbucher Systeme can now be easily mounted on a 5/8" thread. The plug-in system enables the following products to be positioned exactly one above the other:
- RSMP380 mini prisms
-
RSL-X80 laser scanner target (in combination with RSA-X80g-1 adapter)
- RSL580-10 drone target (in combination with RSA-X80g-1 adapter)
The vertical spacing between the prisms and the laser scanner or drone target is exactly 60mm.

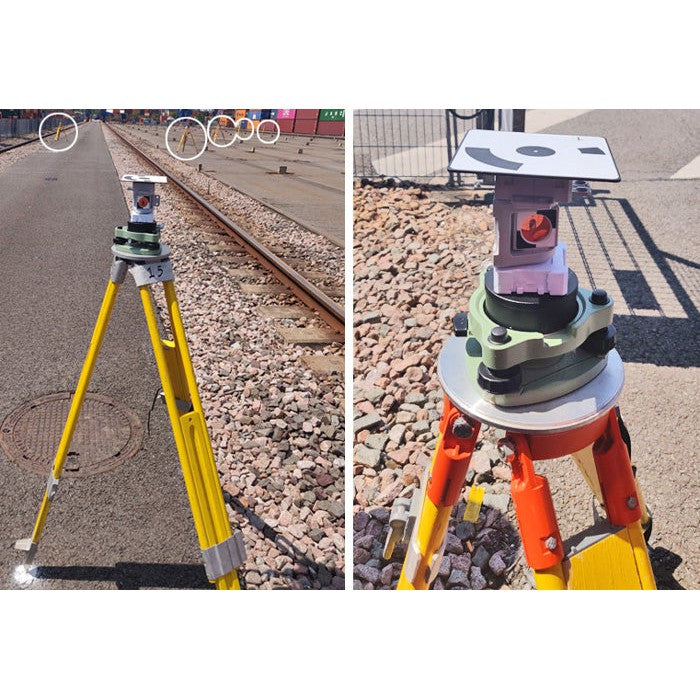

If the system is mounted on a tripod, for example, the prism can be precisely calibrated by means of a total station and then the measuring point can be removed very precisely during the drone overflight.
This combination brings completely new possibilities and a very high accuracy for surveying with drones. In trials with high-precision cameras, accuracies of ±1 mm to a height of 35 meters have already been achieved!
Please Note that due to Manufacturer Requirements this product has a Minimum Order Quantity (MOQ)
